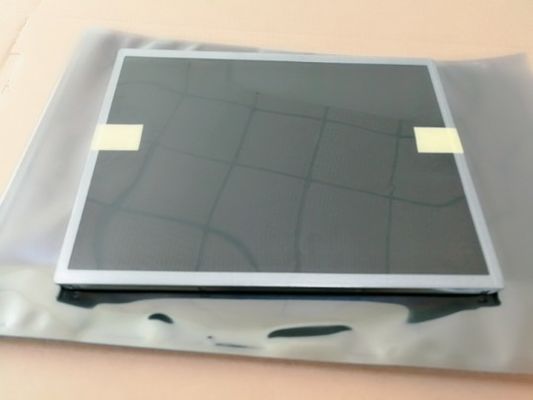

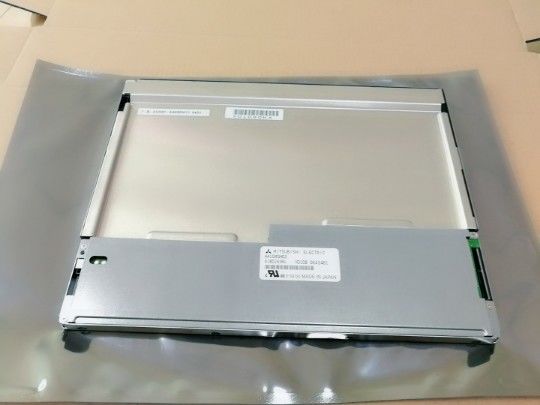

Productdetails:
|

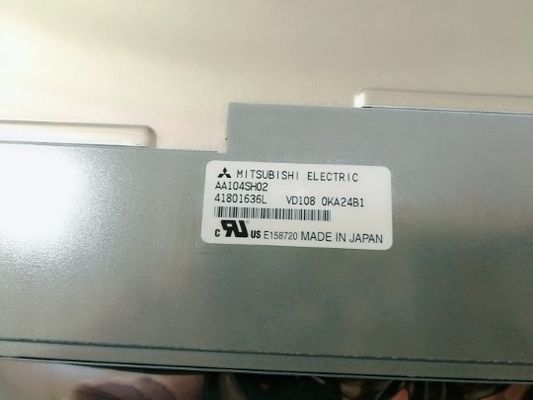

Brandnaam: | Mitsubishi | Modelnummer: | AA104SH02 |
---|---|---|---|
Grootte: | 10,4 duim | Resolutie: | 800 ((RGB) × 600 [SVGA] 96PPI |
Helderheid: | 700 cd/m2 | Lamptype: | LVDS |
Markeren: | Het Comité van SVGA 82PPI TFT LCD,Het Industriële Lcd Comité van WLED LVDS |
Basisinformatie: | Luminans (cd/m2) | Zienhoek (L/R/U/D) | Reactietijd (ms) |
---|---|---|---|
700 (type) | 80/80/80/60 (type) | 4/12 (Typ.) ((Tr/Td) | |
Het beste zicht op | Afbeeldingsmodus | Contrastverhouding | |
Om zes uur. | TN, normaal wit, transmisief | 700: 1 (typisch) (transmisief) | |
Display kleur: | Kleurtemperatuur | Kleuren weergeven | Witte coördinaten |
6485K | 262K/16.7M (6-bit / 8-bit) | X:0.313; Y:0.329 | |
1931 Kleur Gamlt: | NTSC-verhouding | sRGB-dekking | Adobe RGB dekking |
41% | 58% | 43% | |
DCI-P3-dekking | Dekking van Rec.2020 | Opmerkingen | |
43% | 31% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Witte variatie: | 1.30 (max.) ((5 punten)![]() |
||
Prestaties: | 3D-technologie | Zichtbaarheid van zonlicht | Reflectie |
Panelgrootte: | 10.4" | |||
---|---|---|---|---|
Pixel kenmerken: | Pixelformaat | Pixelconfiguratie | Pixelpitch (mm) | Puntpitch (mm) |
800 ((RGB) × 600 [SVGA] | RGB verticale strook | 0.264×0.264 [96PPI] | 0.088x0.264 | |
Mechanische afmetingen: | Actieve oppervlakte (mm) | Bezeloppervlakte (mm) | Omvang van de contour (mm) | Omtrekdiepte (mm) |
211.2 ((H) × 158.4 ((V) | 215.4 ((H) × 161.8 ((V) | 230 ((H) × 180,2 ((V) | 10.5±0,5 mm | |
Overzichtskenmerken | Vormfactor | Oriëntatie | Afmetingsgraad | Vormstijl |
Platte rechthoek | Landschapstype | 43 (H:V) | ||
Montage: | Zijdelingse bevestigingsgaten (4-M3) aan linker, rechter rand | |||
Andere gegevens: | Gewicht | Paneldekking | Behandeling | |
520 g (type) | - | Antiglare, harde coating (3H) |
Omgekeerde scanning: | Ja (180°) | |
---|---|---|
Verticale frequentie: | 60 Hz![]() | 4.8W (type |
Lampken: | Type | Positie | Hoeveelheid![]() |
Vorm | Leven ((Uren) | Verwisseling van lampen |
---|---|---|---|---|---|---|
WLED | Typ randlicht (bovenzijde) | 2 snaren | 2 snaren | 100K (type) | Vervangbaar | |
WLED Electrical: | Spanningsvoorziening | Huidig aanbod | Kracht![]() |
|||
27/33,3V (type/max.) | 70/80 mA (type/max.) | 3.7W (type.) | ||||
Interface kenmerken: | Positie | Achterlichtstuur | Type | |||
- | - Nee, niet echt. | Verbinding | ||||
Interface-details: | Brandnaam | Model | Pin Pitch | Pinbedrag | Hoeveelheid | Configuratie![]() N:No connection L:Low Voltage A:Anode C:Cathode" width="16"/> |
JST | SM06B-SHLS-TF ((LF) ((SN)) | 1.0 mm | 6 pinnen | 1 stuks | BLE-6PINS-NNCAAC |
Panel Driving Electrical: | Spanningsvoorziening | Huidig aanbod | Kracht | |||
---|---|---|---|---|---|---|
3.3V (type.) | 315/500 mA (type/max.) | - | ||||
Interface kenmerken: | Positie | Signaal | Type | |||
- | LVDS (1 ch, 6/8-bit) | Verbinding | ||||
Detail van de aansluiting: | Brandnaam | Model | Pin Pitch | Pinbedrag | Hoeveelheid | Configuratie![]() |
JAE | FI-SEB20P-HFE | 1.25 mm | 20 pinnen | 1 stuks | LVDS-20P1C8B-010H |
