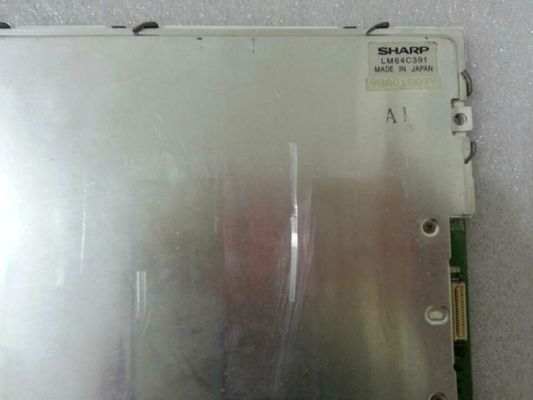

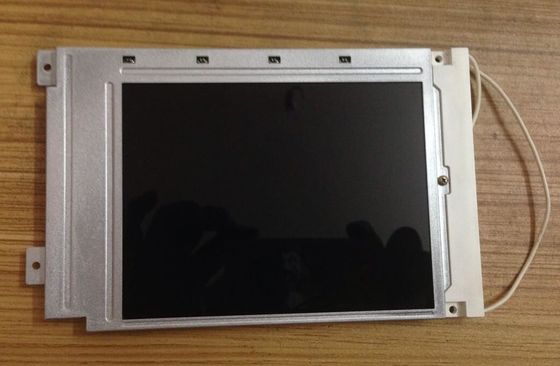

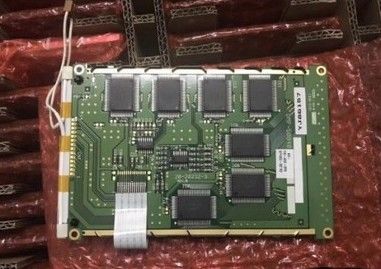

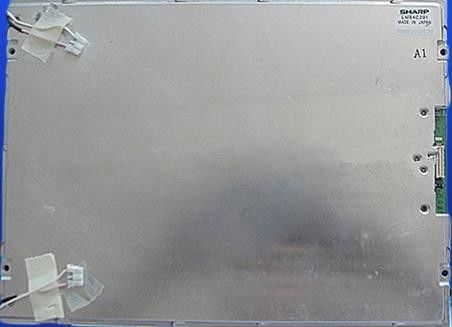

11.3" LCM 640×480RGB 150cd/m² LM64C391 Sharp TFT LCD Display

Grote Afbeelding : 11.3" LCM 640×480RGB 150cd/m² LM64C391 Sharp TFT LCD Display

Productdetails:

Plaats van herkomst:	JAPAN
Merknaam:	Sharp
Certificering:	ISO9001
Modelnummer:	LM64C391

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1pcs
Verpakking Details:	STANDAARDverpakking
Levertijd:	1-2DAYS
Betalingscondities:	TT/PAYPAL/ESCROW/WESTERN UNION
Levering vermogen:	100pcs

Contact

11.3" LCM 640×480RGB 150cd/m² LM64C391 Sharp TFT LCD Display

beschrijving

Comité Model:	LM64C391	paneelgrootte:	11.3“
Pixelindeling:	RGB Verticale Streep	Resolutie:	640 (RGB) ×480, VGA, 70PPI
Helderheid:	150 cd/m ² (Type.)	Signaalinterface:	Parallelle Gegevens (met 8 bits), 31 speldenschakelaar
Milieu:	Werkende Temperaturen.: 0 ~ 40 °C; Opslagtemperaturen.: -25 ~ 60 °C	Lamptype:	2 PCs CCFL, 10K-uren, zonder Bestuurder
Hoog licht:	Het Scherpe TFT LCD Scherm van SVGA , Het Industriële LCD Comité van XGA , De Vertoning van LVDS TFT LCD

Sharp LM64C391 Mechanical Details

Pixel Features :	Pixel Format	640(RGB)×480 [VGA]	Dot Pitch	0.120×0.360 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :	Display Area	230.375×172.775 mm (H×V)	Bezel Area	234.4×176.8 mm (H×V)
Mechanical Size :	Outline Dim.	271.5×199.5 mm (H×V)	Outline Depth	10.0 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Face mounting holes (4-Φ3.4)
Other Features :	Weight	670g (Typ.)	Surface	-

Sharp LM64C391 Optical Details

Basic Information :	Brightness	150 cd/m² (Typ.)	Contrast Ratio	25:1 (Typ.) (Transmissive)
	Viewing Angle	30/30/25/15 (Typ.)(CR≥5)	Optical Mode	STN, Normally Black, Transmissive
	Viewing Direction	-	Response Time	220/80 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.265; Wy:0.330	Color Numbers	Color
Color Performance :	Color Temperature	9606K	White Uniformity	-

Sharp LM64C391 Interface Details

Signal Systerm :	Parallel Data (8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	180/250mA (Typ./Max.)
Signal Electrical :	Consumption	0.90/1.25W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	DF9B-31P-1V	1.0 mm	31 pins	1 pcs

Sharp LM64C391 Backlight Details

Back-light Features:	Lamp Shape	Straight	Lamp Type	CCFL	Life Time	10K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	2 pcs	Position	Edge light type (Top and Bottom)
Lamp Electrical :	Voltage Input	490V (Typ.)		Current Input	6.0±0.5mA
	Frequency	20/50KHz (Min./Max.)		Kick-off Voltage	1000/1140V (Max.)(Ta=+25/0℃)
	Consumption	5.88W (Typ.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	BHR-03VS-1	4.0 mm	3 pins	2 pcs	BLL-3PINS-HNL

LM64C391 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 230.375(W)×172.775(H) mm, outline size of 271.5(W)×199.5(H) mm, viewing area size of 234.4(W)×176.8(H) mm, net weight of 670g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM64C391 can provides 150 cd/m² display brightness 25:1 transimissive contrast ratio, 30/30/25/15 (Typ.)(CR≥5) (L/R/U/D) viewing angle , and response time of 220/80 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 10K hours, external backlight driver is additionally needed.
